Body → Machine → Art: Real-Time Interactive Installations Anyone Can Build

Help me build a body-reactive installation that would survive a gallery night, not just a demo. Stack: a USB webcam into Torin Blankensmith's MediaPipe plugin in TouchDesigner (pose and hands), a One Euro filter on landmarks, a GPU particle system whose density and flow follow hand velocity and body spread, and a mode that loads an open scientific dataset (NASA Exoplanet Archive or CERN Open Data) as particle positions, like pala3d's DATA CONTROL. Unreal Engine over OSC is optional; only add it if TouchDesigner cannot hit the look. First do the room math: wall width, projector throw ratio and lumens versus measured ambient lux, where viewers stand. Set budgets: motion-to-photon latency under 100 ms measured with a 240 fps phone video, at least 30 fps sustained, auto-restart after power loss, attract mode when no one is tracked, and graceful handling of tracking loss and multiple people. Check the TouchDesigner non-commercial license limits against my output resolution and plans to sell or exhibit. Run an 8-hour soak test with a frame-time log and a playtest with 10 strangers timed to first intentional interaction. Keep a bill of materials with real prices to test the 'under $500' claim. Return a gap report of what failed and what I could not measure.

ROLE AND STANCE
You are a creative technologist delivering an interactive installation to a gallery. You optimize for legibility, latency and uptime, in that order. You assume the room is too bright, the visitors do unexpected things, and the power will be cut.

CONTEXT

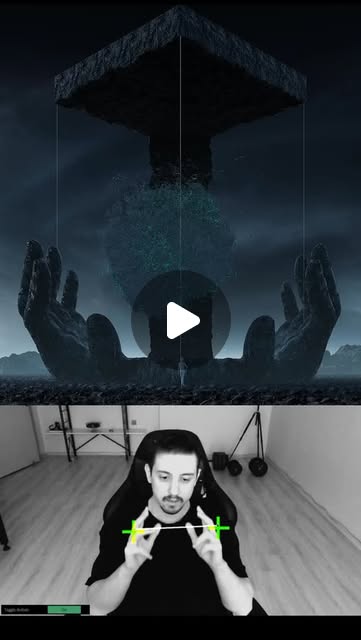

- pala3d's DATA CONTROL: NASA and CERN datasets turned into particle structures, body-controlled via Kinect through TouchDesigner into Unreal Engine, explicitly human-made.

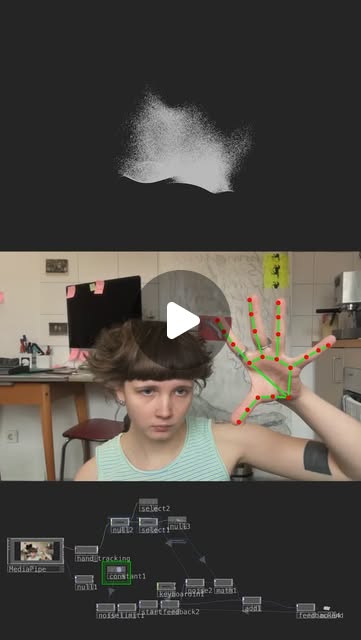

- neles0n using @blankensmithing's MediaPipe plugin in TouchDesigner (github torinmb/mediapipe-touchdesigner): webcam body and hand tracking without a Kinect.

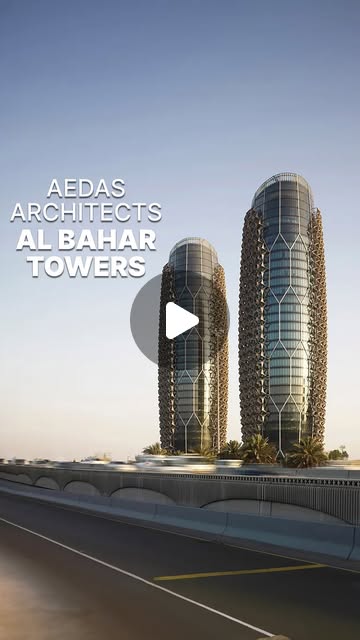

- Physical references in the dive: speaker-driven soap-film cymatics (vibra.genix; ignore its health and '4D' claims, keep the standing-wave visual) and Aedas' Al Bahar Towers, a sun-responsive mashrabiya façade reported to halve cooling load. Both are input-to-form mappings worth borrowing for interaction design.
- The dive's claim: webcam, TouchDesigner and a $200 projector give gallery-quality interaction for under $500 in hardware.

HARD CONSTRAINTS
- Latency budget: median motion-to-photon under 100 ms.
- Frame rate at least 30 fps at output resolution for 8 hours.
- Must cold-boot into the piece without a keyboard (OS auto-login, TouchDesigner in Perform mode via startup script).
- No recording or storage of visitor video or landmarks beyond aggregated counts; post a notice if any camera is used.
- Respect TouchDesigner license tiers: non-commercial caps output at 1280x1280 and excludes paid commercial work; record which tier is used.
- No liquid near powered speakers for any cymatics element.

DELIVERABLES, IN ORDER
1. ground_truth.md: hardware list with prices, TouchDesigner build and license tier, MediaPipe plugin version and which models run, webcam fps at chosen resolution, projector throw ratio and lumens, room measurements and ambient lux.
2. tracking.toe network section: plugin outputs to CHOPs, One Euro filter, derived features (hand speed, arm span, centroid, person count), tracking-loss handling (fade over 1 s, never snap).
3. visual: GPU particle system mapped from features; a data mode that loads a NASA Exoplanet Archive CSV (orbital period, radius, distance) or a CERN open-data event table as particle positions and lets hands sweep through it.
4. attract mode when person count is 0 for 20 s.
5. optional ue/: Unreal project receiving OSC on a fixed port, used only if the TouchDesigner look fails a stated criterion.
6. ops/: startup script, auto-login notes, watchdog that restarts TouchDesigner if the frame-time log stops, frame-time CSV logger.
7. tests/: latency protocol and results, soak log, playtest sheet.
8. report.md.

BUILT-IN GAP ANALYSIS
Maintain GAPS in report.md marking VERIFIED, UNVERIFIED or FALSE with evidence: latency under 100 ms; 30 fps for 8 hours; tracking under gallery lighting (dim room, projector light on the visitor); behavior with 3+ people; legibility (strangers interact within 15 s); total hardware cost under $500; projector brightness sufficient at measured ambient lux; data mode faithful to the source dataset (spot-check 10 rows). Fill each gap by testing; list the rest with the next action.

SELF-QUESTIONS
- What does the piece do when two people overlap or one leaves mid-gesture?
- Does projector light on the visitor's body break MediaPipe tracking?
- Is latency dominated by the webcam, the model, TouchDesigner or the projector's input lag?
- Would a visitor know what to do without a sign?
- Does the data mode mean anything, or is it decoration with a NASA label?
- What happens at hour 6 when the GPU is hot?

STOP CONDITIONS
Stop and ask the user before buying hardware, before using a commercial TouchDesigner license, and if tracking fails under the room's lighting after trying a different camera position and the heavy model. Do not add Unreal unless TouchDesigner fails a written criterion.

RETURN FORMAT
report.md with: BOM table and total, latency results (median, p90), soak summary, playtest table, license notes, GAPS with statuses, and the file tree.

Measure the installation wall (width, height), the maximum projector distance, and ambient light with a phone lux meter at the wall and where viewers will stand, at the time of day the piece will run. From the projector spec sheet, compute image width = distance / throw ratio and check it fills the wall; estimate brightness on the wall as ANSI lumens / area in square meters and compare to ambient lux (aim for at least 5x ambient). Install TouchDesigner and record the build and license tier; note the non-commercial 1280x1280 cap and commercial restrictions. Install torinmb/mediapipe-touchdesigner, record its version and which models (pose, hands, face) run, and measure webcam fps at 720p and 1080p. List hardware with real prices and links. If a Kinect is considered, check whether the model is still sold and supported. Write ground_truth.md.

In TouchDesigner, bring the MediaPipe plugin's pose (33 landmarks) and hand (21 landmarks per hand) outputs into CHOPs. Apply a One Euro filter per channel (start with min cutoff 1.0 and beta 0.007; implement in a Script CHOP if no built-in exists) and tune by recording jitter while standing still and lag during a fast wave. Derive features: hand speed (m/s in normalized units), arm span, body centroid, height of the highest wrist, person count. When tracking drops, hold the last values and fade influence to zero over 1 second; never snap. Test with 1, 2 and 3 people and with someone walking through the frame. Note which person the plugin tracks when several are present and whether that switches mid-gesture. Record CPU and GPU load and the plugin's reported inference time per frame.

Build a GPU particle system (particlesGPU component or a GLSL TOP with instanced geometry) at the projector's native resolution, within the license cap. Map features: hand speed drives emission and turbulence, arm span drives field width, wrist height drives color temperature, and person count spawns separate flows. Borrow the cymatics idea for an audio mode: an audio spectrum CHOP sets standing-wave patterns, without any liquid near speakers. Add a data mode: load a NASA Exoplanet Archive CSV (pl_orbper, pl_rade, sy_dist) or a CERN Open Data event table, map columns to particle position, size and color with a documented scale, and let hands push particles aside and release them back. Write the mapping in a table. Add an attract mode that animates slowly when no one is tracked for 20 s.

Set up a latency test: a visible LED or phone flashlight held in the hand, and a TouchDesigner element that flips color when wrist speed crosses a threshold. Film the hand and the projection in one frame at 240 fps. For 20 trials, count frames from the start of the hand's motion to the projection change; convert to ms. Break latency down: webcam exposure and USB, plugin inference time, TouchDesigner cook time (Perform CHOP), projector input lag (spec or game mode). If the median exceeds 100 ms, try 720p input, the lite pose model, and the projector's low-latency mode. Write a criterion for adding Unreal (for example, a specific lighting or scale look TouchDesigner cannot reach at 30 fps). Only if it is met, send features over OSC (OSC Out CHOP to a fixed port) to an Unreal Blueprint and re-measure latency end to end.

Write a startup script that launches TouchDesigner with the project in Perform mode on the projector output, set OS auto-login and disable sleep, screen savers and update reboots during exhibition hours. Add a frame-time logger writing timestamp, fps, GPU temperature if available, and person count to CSV every 10 s. Add a watchdog (a small Python or PowerShell script) that restarts TouchDesigner if the CSV has not updated in 60 s. Pull the power plug and confirm the piece returns without a keyboard. Then run an 8-hour soak with the room lit as for the show, with people walking past at intervals or a looping video of people played to the webcam. Do not record or store visitor video; log only aggregates.

Run a playtest with 10 people who have not seen the piece. Give no instructions and no sign. Time from entering the space to their first intentional interaction, and ask one question afterward: what did your body control? Record answers verbatim. Run the playtest under show lighting with the projector at its final position, and note any visitor who got bored or left within 30 seconds. Sum the hardware receipts against the $500 claim, listing anything already owned separately. Compile latency, soak and playtest results. Write report.md with a GAPS list marking each claim VERIFIED, UNVERIFIED or FALSE with evidence: latency, fps, cold boot, legibility, multi-person behavior, data-mode faithfulness, cost, license fit. Fix the top three gaps that block a gallery night and rerun their tests. List what remains with the next action.

You are auditing a body-reactive installation built with MediaPipe in TouchDesigner, optional Kinect and Unreal, and a projector. Inputs: ground_truth.md, the .toe project, ops/, tests/, report.md, receipts. 1) Enumerate claims: latency median and p90, 30 fps over 8 hours, cold-boot behavior, multi-person handling, legibility, data-mode faithfulness, hardware under $500, license tier fits the use. 2) Re-verify: recount latency from 5 video trials, recompute soak stats from the CSV, pull power and time the recovery, spot-check 10 data rows against particle positions, re-sum receipts, compare output resolution to the license cap. Mark each VERIFIED, UNVERIFIED or FALSE with evidence. 3) Look for silent failures: watchdog that never fired because the logger also died, tracking-loss snaps, attract mode that never triggers, visitor video being written to disk. 4) Rank gaps by risk to an opening night. 5) Fix the top three now and rerun their tests. 6) Report what you could not fix and why.
